Carton print inspection checks whether the presented carton carries the approved artwork and required variable information. Separate artwork identity, readable text, expected text and barcode content in the brief. Then prove the camera views, job selection and removal of the correct failed carton together.
Speak directly with Oxford Vision Systems about carton artwork and variable-print checks.

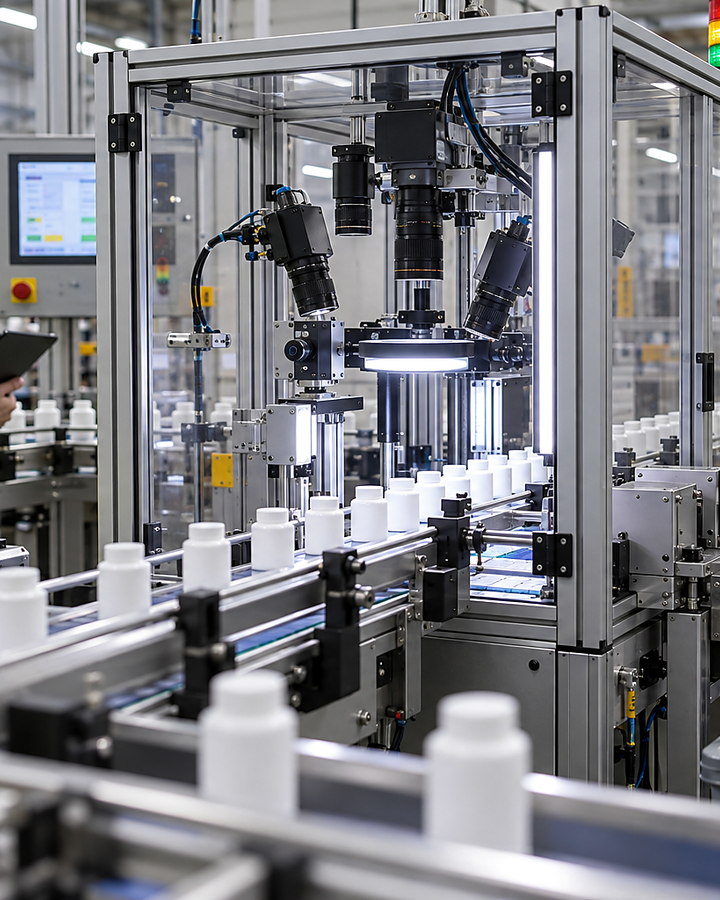

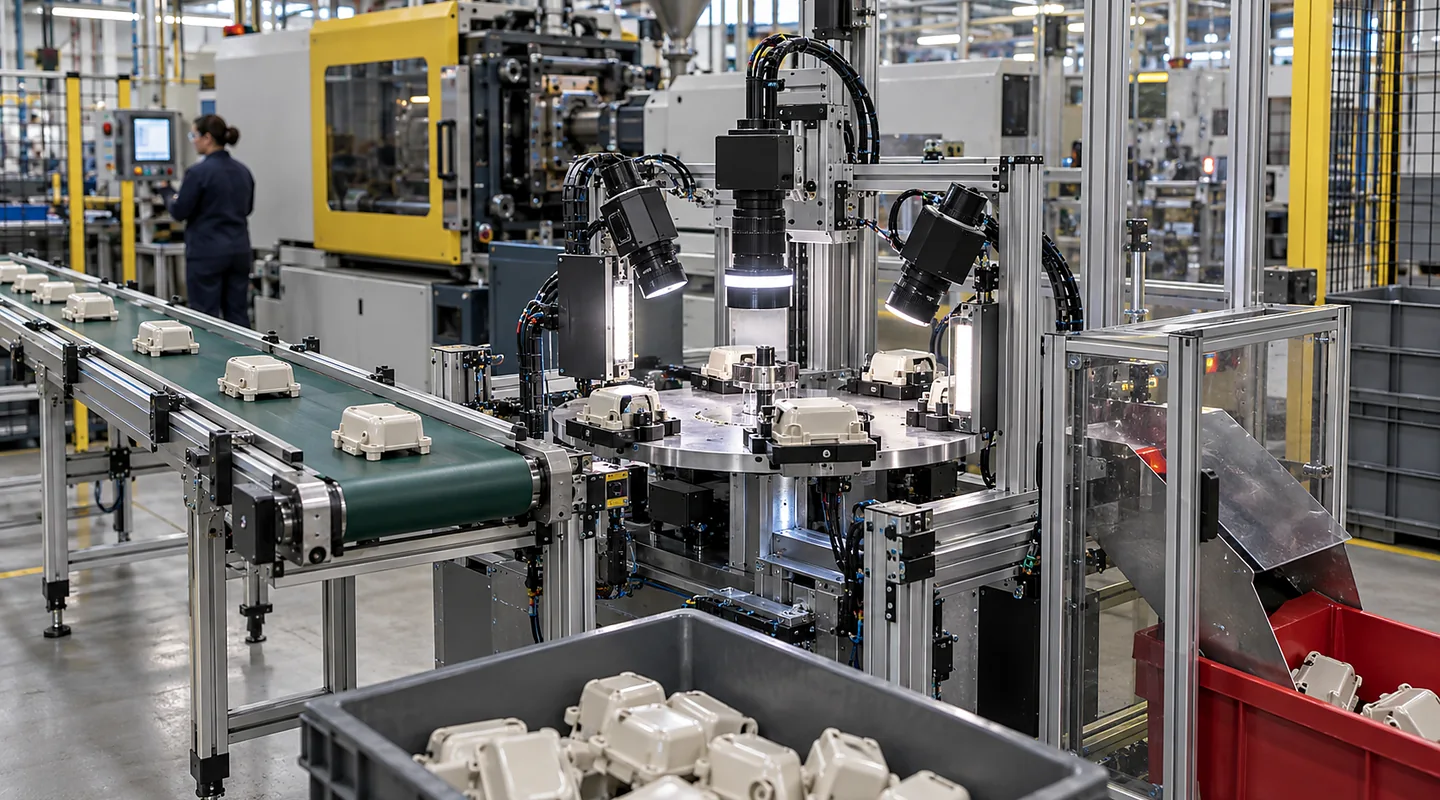

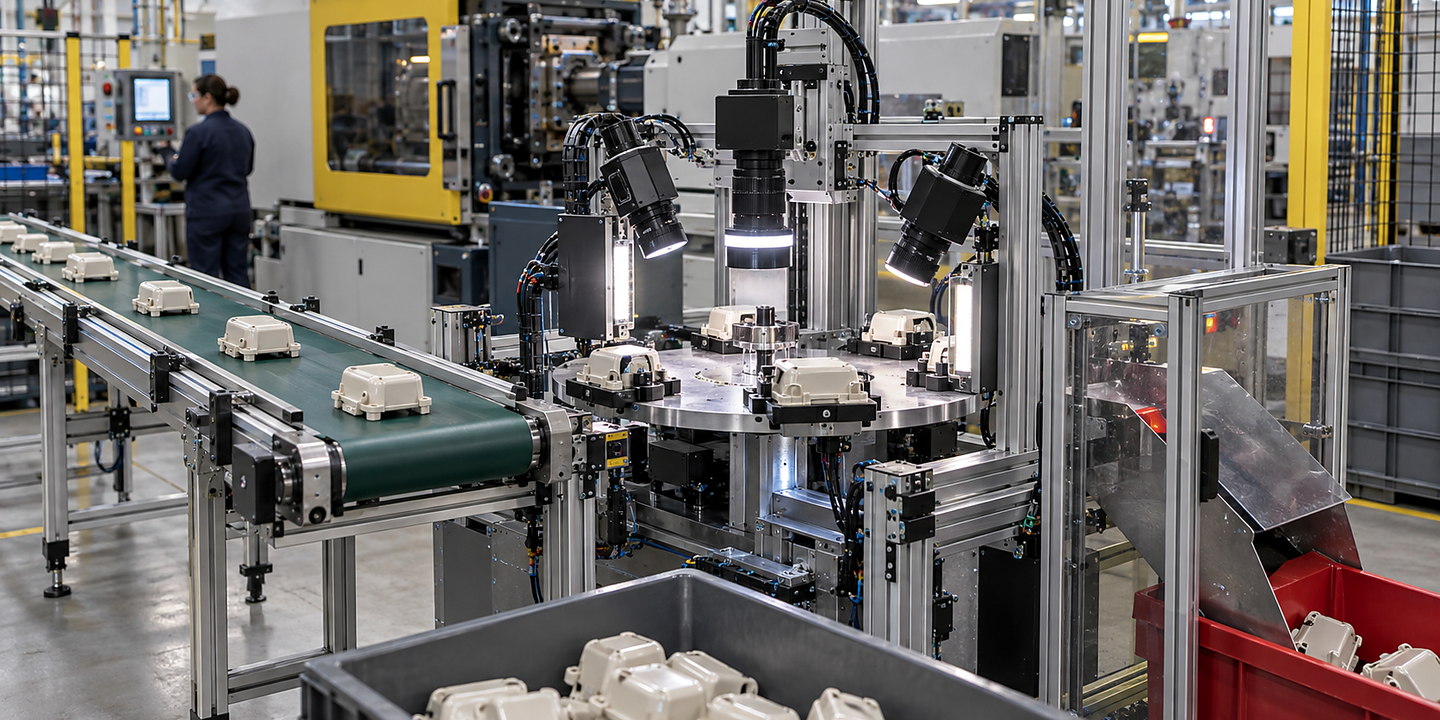

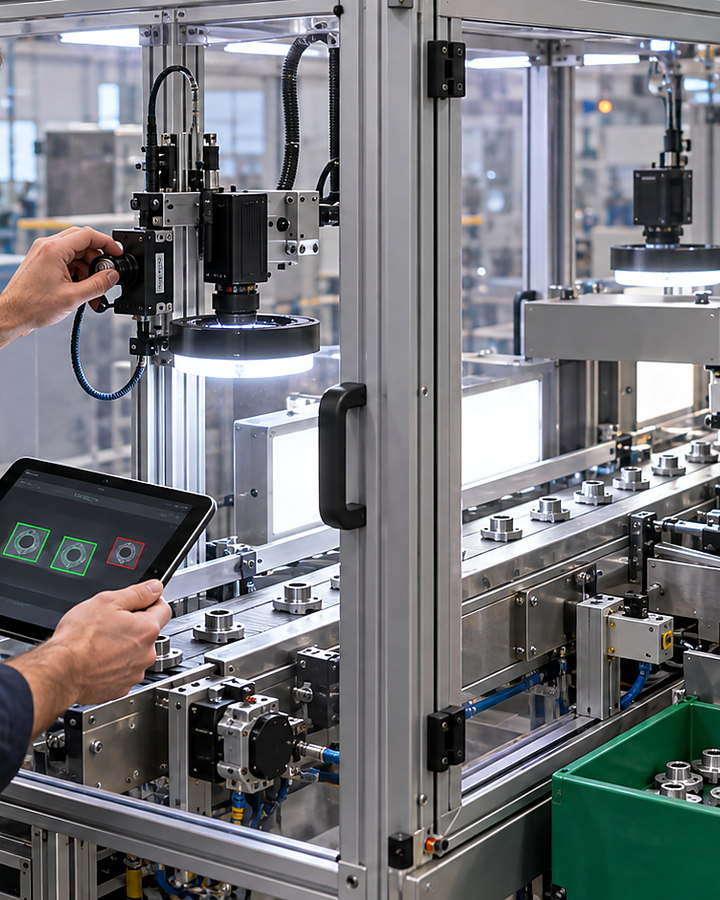

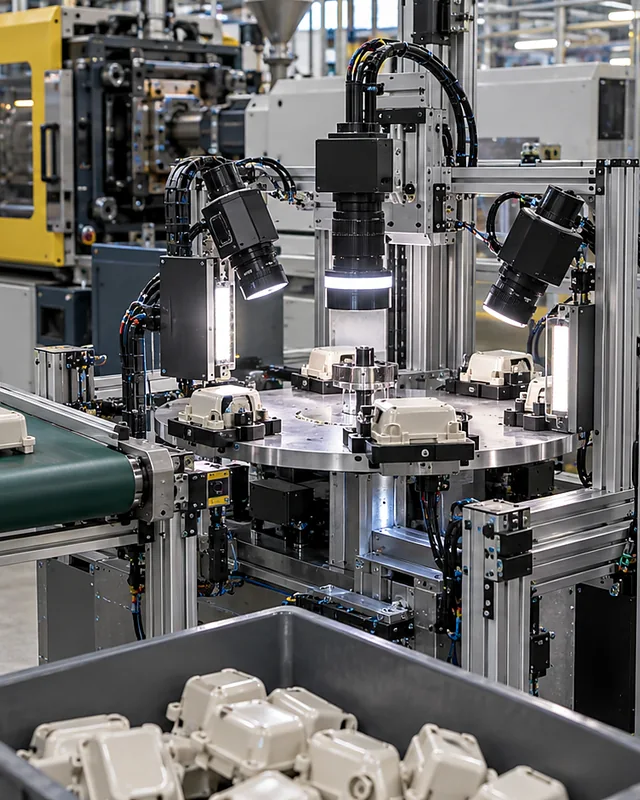

Photographs illustrate general machine-vision inspection. Carton print checks must be trialled with the actual artwork, variable data and line presentation.
Separate artwork identity from the variable date, batch and barcode checks. Supply approved artwork and examples of realistic printing or job-selection errors. Define the views available on the line, how the active recipe is selected and how the system identifies and removes the carton associated with a failed inspection.
A single pass/fail result can conceal several different checks. Specify which decisions the system must actually make.
Provide the approved artwork revision and examples of similar variants that must fail. Identify the distinguishing features and their panel positions. Decide how the active product or job selects the matching inspection recipe before cartons enter the station.
Separate missing-print detection from reading characters and comparing them with expected data. OCR reads characters; OCV checks expected characters. Define date and batch formats, allowed variation and the authorised source of the expected job values.
Specify whether the requirement is code presence, decoding, correct data or a separate print-quality verification. These are different acceptance questions. Agree the symbology, content rules and required evidence instead of using the word readable as the complete specification.
Show carton orientation, conveyor contact, flaps and the position of each print area. Include tilt, skew, size changes, glare and normal surface variation. Confirm whether every required face is visible at the chosen inspection point.
Mark the inspection-to-reject distance and describe gaps, speed changes and carton movement. Agree reject confirmation, a full collection area and loss of tracking responses. Check that a fault decision remains associated with the same physical carton.
Control recipe selection, first-off approval, rejected-carton handling and any re-inspection route. Challenge an old artwork variant and a correctly printed but wrong batch code. Reprinting or reworking a carton must not silently bypass the agreed checks.
Read the carton artwork and variable-print process guide for reference selection, near-match trials and pack tracking.
The right choice changes with visible defect or measurement definition for carton artwork & variable-print checks, good, bad and marginal sample range, your line layout and required results.
Build an approved challenge set covering wrong artwork, missing or weak print, incorrect characters, incorrect encoded data and marginal acceptable cartons. Record the expected decision for each sample before testing. Run the set through actual presentation and reject handling, then repeat after a recipe change and restart. Review false accepts and false rejects separately.
Use the selection guide to compare the scope, then send the specification checklist with your application enquiry.
Your final solution for carton artwork and variable-print checks must reflect the law, current standards and site-specific risks that apply to your installation.
